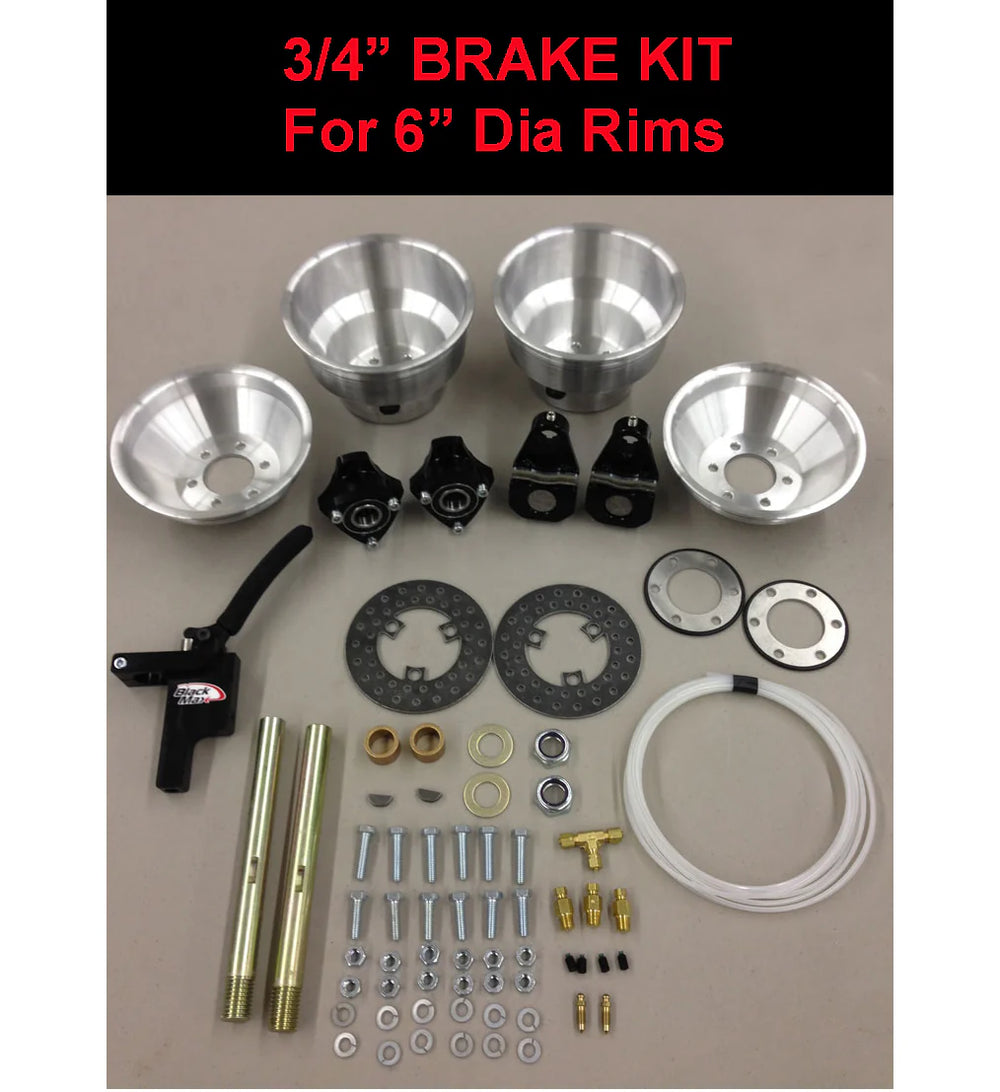

Black Max Disk Brake System for Mini-MAX Aircraft
Build the Black Max hydraulic disc-brake system for your Mini-Max step by step. Each choice narrows the next one to compatible parts, and the total updates as you go.
Base system $555.00 Your configured total updates as you choose.
Full product description
Take your Mini-MAX to the next level with the Black Max hydraulic disk brake system—the ultimate in stopping power and ground control. Whether you’re flying a mid-wing Mini-MAX or a Hi-MAX, this kit is the top choice for builders who want precision braking and modern performance.
Designed for Mini-MAX Builders
Mid-Wing Models: Requires metal gear and some additional fabrication. (we will have a kit for this shortly)
Hi-MAX Models: Works with steel or aluminum spring gear.
Factory Guidance: Our team can help ensure you’ve got the right setup for your aircraft.
Features
Hydraulic Disk Braking – Crisp, reliable stopping power compared to band or drum systems.
Precision Fit: Designed specifically for custom made ¾″ axles (woodruff key seat) and compatible with Black Max 6″ aircraft wheels.
Optional Dual-Puck Calipers – Upgrade for maximum performance, especially on heavier builds.
Durable Construction – Aircraft-grade components built for longevity and confidence.
-
Hydraulic Braided Hose Option: Upgrade from standard nylon to premium braided hoses with JIC female swivel fittings for superior flexibility and durability. Hoses are stocked in 1-foot increments for easy configuration:
Single-lever MC setup: Hose 1 → Master Cylinder to Tee; Hoses 2 & 3 → Tee to each caliper.
Dual-lever or heel/toe setup: Hoses 1 & 2 → Master Cylinder directly to calipers.
Tire Note: We recommend a minimum of 4-ply tires to ensure safe and reliable operation.
Why Choose Black Max for Your Mini-MAX?
Mini-MAX pilots love the simplicity and performance of their aircraft—but braking is one area where an upgrade really shines. Black Max disk brakes make taxiing, takeoffs, and landings smoother and safer, especially on shorter fields or when operating at higher weights.
What you are configuring
Made for Mini-Max and Hi-Max
Hydraulic disc braking sized for the Mini-Max family. Hi-Max models work with steel or aluminum spring gear. Mid-wing Mini-Max models need metal gear and some additional fabrication; tell us your model in the first step and we will confirm the right setup.
Choose axle length by landing gear
Use extended axles when the landing gear has a strut on the outside of the gear, including mid-wing Mini-Max and SuperMax installations. Standard axles are used on most Hi-Max and AeroMax models.
Why hydraulic discs
Crisp, repeatable stopping compared with band or drum brakes: easier taxiing, more control on short fields and at higher operating weights.
Dual-puck option
Dual-puck calipers add braking force for heavier builds and, when plumbed correctly, support independent pilot and copilot braking.
Braided hose option
Upgrade from nylon line to braided hose with JIC female swivel fittings, stocked in one-foot lengths. Single-lever and single heel/toe systems use three hoses (master cylinder to tee, tee to each caliper); dual systems use one hose per circuit.
Tire recommendation
Black Max recommends at least a 4-ply tire with this 3/4" kit. The configurator flags the 2-ply option if you choose it.
