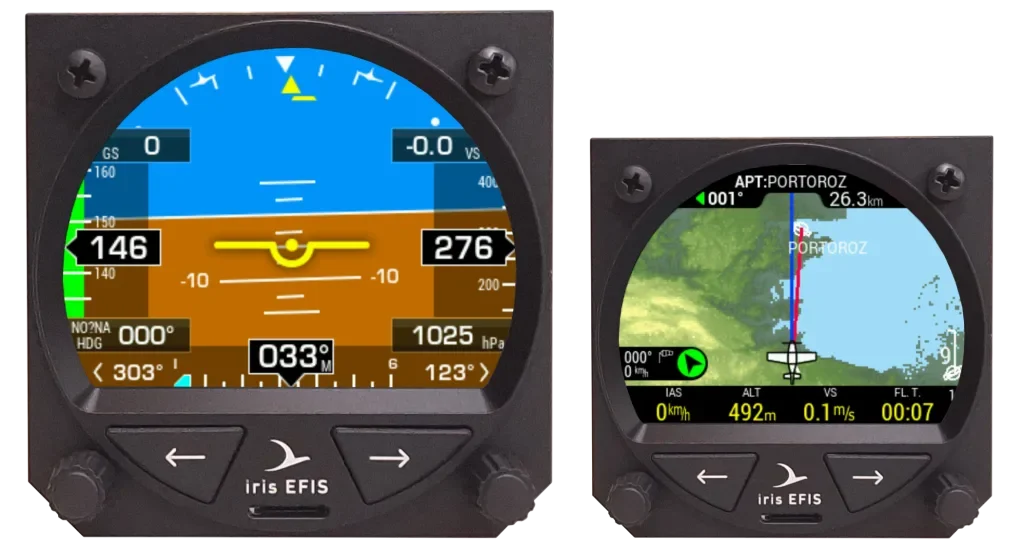

The IRIS EFIS (Electronic Flight Instrument System) by LX Navigation delivers essential flight data in a compact, high-resolution digital display. Designed for ultralight, experimental, and glider aircraft, this unit features full configurability over WiFi and a robust 3-hour internal backup battery.
It displays airspeed, altitude, vertical speed, and optional GPS & OAT-derived data like true airspeed, ground speed, and density altitude — all customizable on-screen before or after installation.
• Bright, transflective display (sunlight readable)
• Customizable screen layout: font, color, units, tape scaling
• Display multiple data boxes: IAS, ALT, VSI, TAS, GS, OAT, etc.
• Layout locking for instructors, clubs, and fleet operators
• Easy WiFi configuration using your phone, tablet, or PC
• Connects to optional GPS and OAT sensors
• Internal backup battery for 3 hours of power
• IRIS EFIS instrument (your choice of 57 mm or 80 mm size)
• CAN-bus & power connector
• Mounting screws
• AFM supplement and quick-start documentation
• Panel sizes:
– 57 mm (62 × 62 × 52 mm, 214 g)
– 80 mm (82 × 82 × 52 mm, 278 g)
• Input voltage: 9–30 V DC
• Current draw: ~250 mA (non-certified) / ~150 mA (certified)
• Internal backup battery: 3 hours
• Interfaces: CAN-bus, WiFi (via optional CAN2WiFi)
• OAT Sensor – for temperature, TAS & density altitude
• GPS Module – for ground speed & GPS altitude
• CAN2WiFi – for full wireless configuration & layout editing
• Ultralights and homebuilt aircraft
• Gliders and motor gliders
• Flight schools and instructor panels
• Builders replacing multiple gauges with one smart EFIS
The IRIS EFIS replaces up to three analog gauges in a single, compact unit — with full flexibility and safety built in.
