LX Navigation IRIS Series Configurable Digital Cockpit Instruments

The IRIS Series from LX Navigation includes high-performance digital flight instruments designed to replace traditional analog gauges. With smart customization via WiFi and internal backup batteries, these units deliver precision, safety, and ease of installation for ultralights, experimentals, and certified gliders.

Each unit is configurable using your phone, tablet, or PC via the CAN2WiFi interface. Customize colors, units, scales, data layouts, and fonts with ease — before installation.

🛠 Available Models

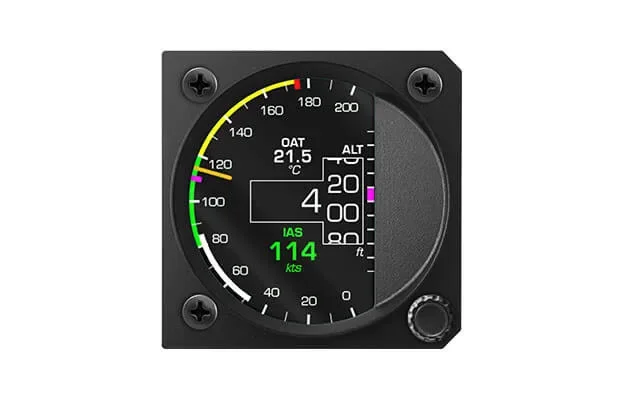

• IRIS All-in-One (Airspeed, Altimeter, Vertical Speed in one unit)

• IRIS Altimeter

• IRIS Airspeed Indicator

• IRIS G-Force Meter

• IRIS Chrono

• IRIS Display (no sensors; mirrors other IRIS displays)

Available in:

• 57 mm or 80 mm panel cutout sizes

• Non-TSO and EASA STC certified versions (check variants)

📏 Dimensions & Specs

57 mm Panel Size
• Dimensions: 62 × 62 × 52 mm
• Weight: 214 g

80 mm Panel Size
• Dimensions: 82 × 82 × 52 mm
• Weight: 278 g

Power Supply
• 9–30 V DC
• ~250 mA @12 V (Non-TSO)
• ~150 mA @12 V (Certified)

Display
• Transflective (sunlight-readable)
• Custom layout with editable navboxes, colors, fonts, and units

Backup Battery
• 3 hours operation in case of power failure (standard on all units)

🧠 Smart Features

• WiFi configuration via browser — no app required
• Customizable IAS arcs, altitude tapes, and data readouts
• Layout locking for flight schools and clubs
• Optional GPS Module for ground speed
• Optional OAT sensor for TAS and density altitude

📦 What’s Included

• IRIS instrument (based on your selection)
• CAN bus + power connector
• Mounting screws
• Printed documentation (AFM supplement included)
• Optional OAT sensor or GPS module (if selected)

🧾 Certification

• EASA STC approved for over 360 glider/motor-glider types
• Perfect for certified aircraft, ultralights, and experimentals

🛒 Add-Ons (select from product options)

• GPS Module with antenna
• OAT Sensor (1.5 m cable + probe)
• CAN2WiFi configurator
• Pre-configured layout upload

📁 Downloads

• User Manual
• Installation Guide
• Panel Cutout Templates
• Datasheets
(Available via LX Navigation Downloads Portal)

Need help choosing the right model or options?
Feel free to contact us — we’ll help configure the perfect IRIS system for your aircraft.
