The ULTIMATE Flying Experience!

A 14" wide fuselage and your legs out in the windstream? Are you crazy?! Well, yes we are! Crazy about flying this unique aircraft with it's wide open cockpit and fantastic visibility.

With it's heritage tracing back to our original Airbike, the AeroMax is our newest design and some say our most fun. Similar to a motorcycle or Jetski, the pilot doesn't just sit in a cockpit, he/she "wears" the aircraft! Wave at your friends, smell the ocean and explore the countryside in the AeroMax. What a blast! It's the perfect warm-weather airplane. And when the weather gets cooler just bundle up and keep flying. They drive snowmobiles in the winter, don't they?

The AeroMax has the most advanced kit in its class, with pre-fabricated metal components and CNC Laser-cut plywood parts. They're not only cut to shape, but are also laser marked with the part number, orientation in the airframe and the required fasteners. Now that's a real time saver! With the AeroMax kit you save time 3 ways: The parts are pre-fabricated, they fit perfectly and there is much less "head-scratching" as you try to figure out how everything goes together.

Because of this ingenious construction method plans are not available or even required. All you need is the AeroMax construction manual.

Plan on doing a lot of "off-airport" landings? Then ask about our Tundra Tire option. With those big fat soft wheels and the AeroMax's slow stall speed you can land just about anwhere. And soon we hope to offer a float option for water operation.

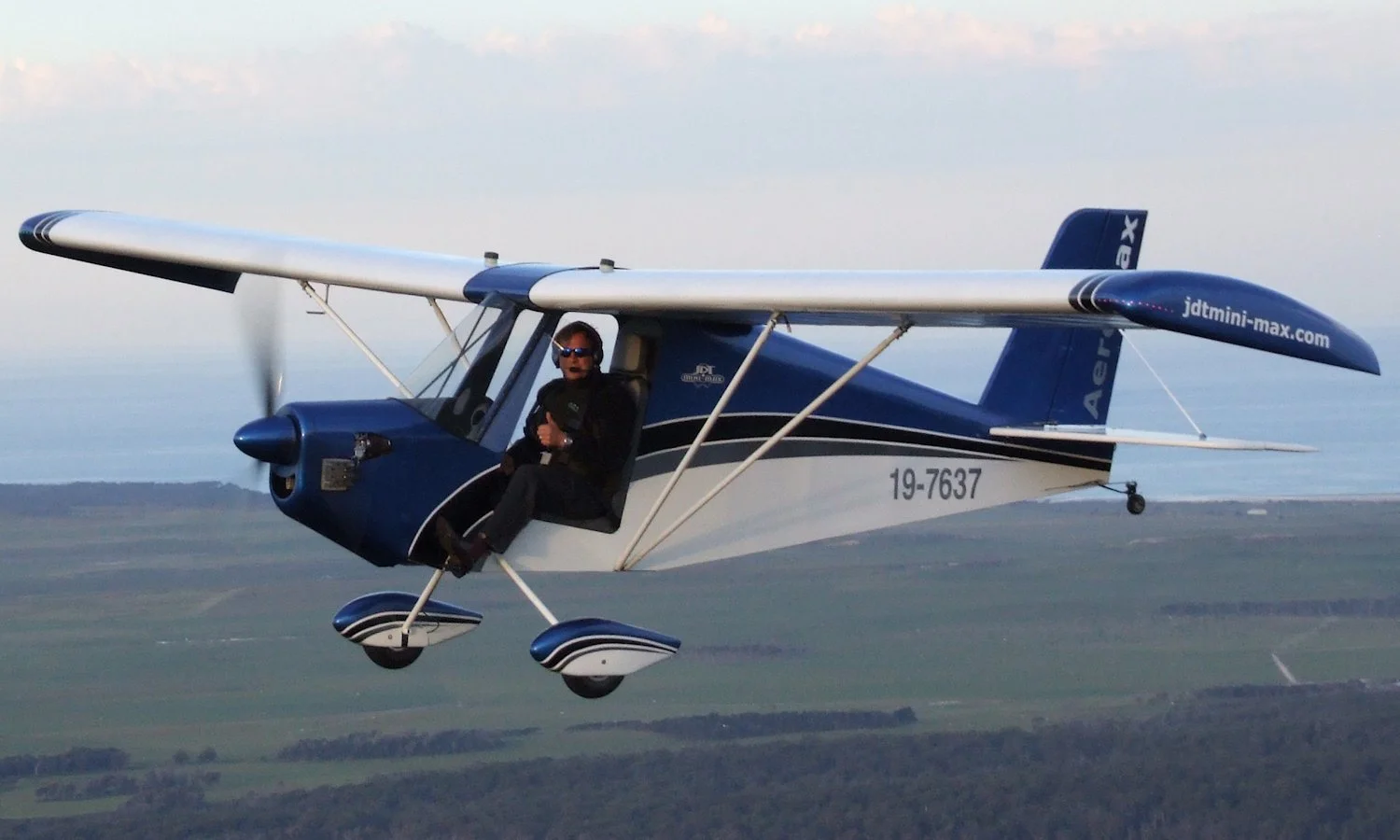

Person flying a blue and white ultralight aircraft over a landscape with a view of the horizon and fields below.

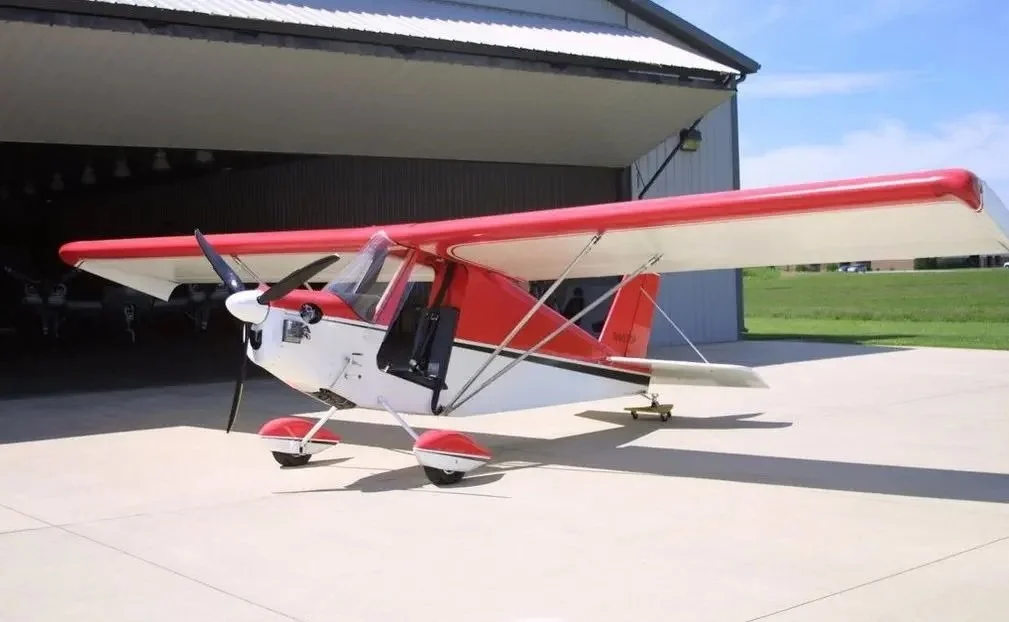

Small red and white airplane outside a hangar

    • Heavy duty airframe, for large guys and large engines

    • Open step-through cockpit (easy access)

    • Spring steel landing gear

    • Fiberglass “droop” wingtips

    • Easily removable wings

    • Wheel drum brakes

    • Two 6-1/2 gallon wing tanks

    • Pre-fabricated metal parts

    • CNC Laser Cut and Marked plywood parts

    • Electronic Elevator Trim

    • Outstanding short field performance

  • Build time 250-300 hours
    Engine  Hirth F-23, 50HP
    Fuel Capacity 13 Gallons
    Flight controls 3-Axis
    Wingspan 28’5”
    Wing area 127.7 sq. ft.
    Length 17'10”
    Height 5'-11”
    Empty weight 429 lbs.
    Gross weight 738 lbs.
    Design load factors +4.4 -2.2 G

  • Top Speed 75 mph
    Cruise Speed 69 mph
    Stall Speed 32 mph
    Vne 110 mph
    Climb Rate >1500 fpm
    Take-off Roll <160 ft
    Landing Roll 140 ft
